Description

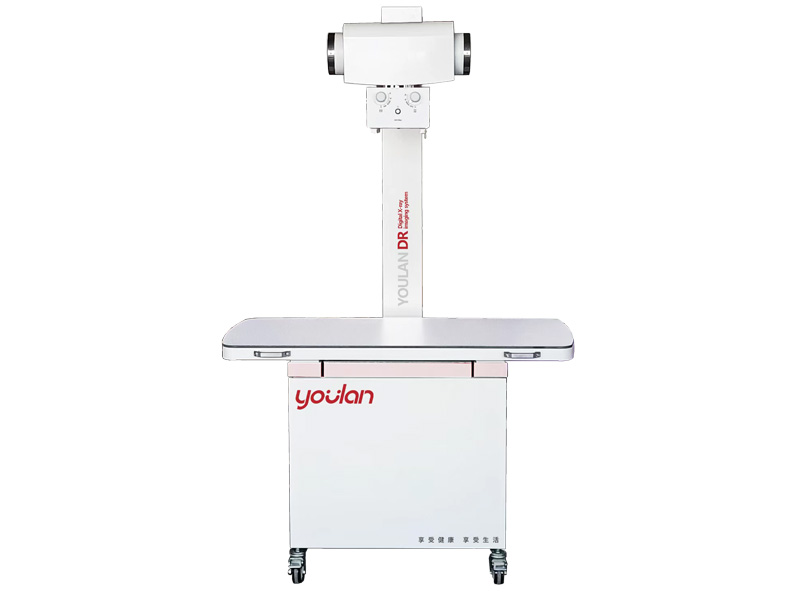

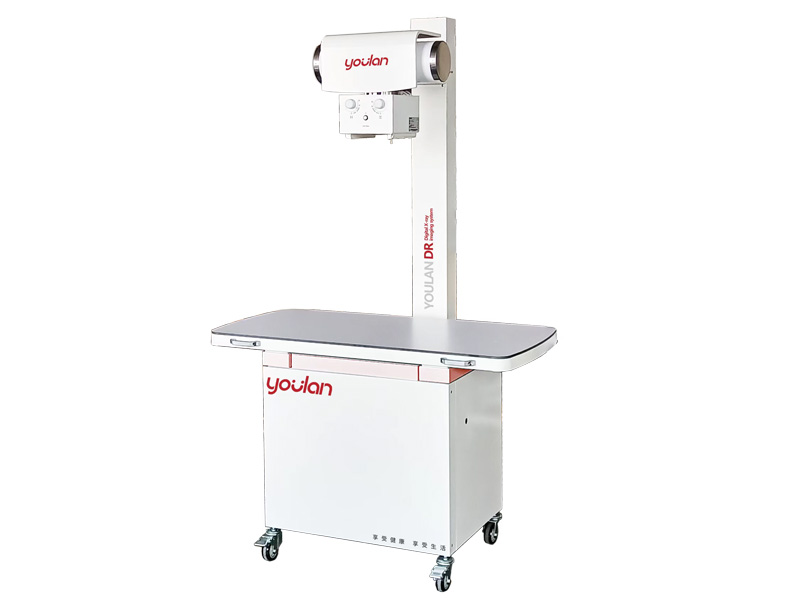

YLDR400（plus）VET
lProfessional acquisition software
lEasy to operate
lHigh resolution image
lConnection to management software
lAutomatic image area analysis
lSupport clinics reading
Veterinary Software
Automatic selection of exposure parameter conditions.
Animal images are clearly visible.
Parameter adjustment and image reading can be performed
at the same time as animal X-ray exposure.
Highly suitable for veterinary clinical applications
Dual Microfocus Tube
Double micro-focus, the shortest exposure time is 1ms, reduce
the artifacts such as shortness of breath, heartbeat, nervous
trembling in animals, and avoid misdiagnosis and missed diagnosis.
DR Detector Panel
Sensor/Scintillator: Silicon/Cesium Iodide
Dimensions :460*460*15mm
Spatial resolution: 3.6lp/mm
A/D conversion: 16bits
Pixel size :140μm
Effective area: 17*17 inches
17*17Fixed flat panel detector
The advanced CsI technology has sufficient signal-to-noise
ratio to ensure the lowest possible radiation dose, achieving
high detection quantum efficiency, high spatial resolution,
and high dynamic range.
X-Ray Generator
Power supply voltage: single-phase three-wire system 220V±22V
Power frequency: 50Hz ± 1Hz
Nominal current: 400ma
Maximum output power: 32kW
Working frequency≥300kHz
Maximum peak tube voltage: 125kV
